Model EW1100L6SW Flexible Unit

Now you can reach any place thanks to its 6 interchangeable wave guide parts, that allows multiple positions and lenghts.

Model EW1100L6SW Accessories

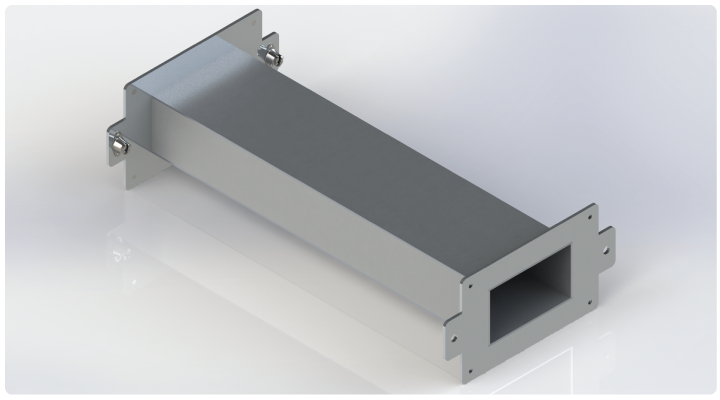

Waveguide 400mm

Code: WG400

Description: straight waveguide with flanges at each end.

Features: Length 15,75 inches (400mm). Internal dimensions: 3,9 x 2,15 inches (99×54,64mm)

Material: Aluminum

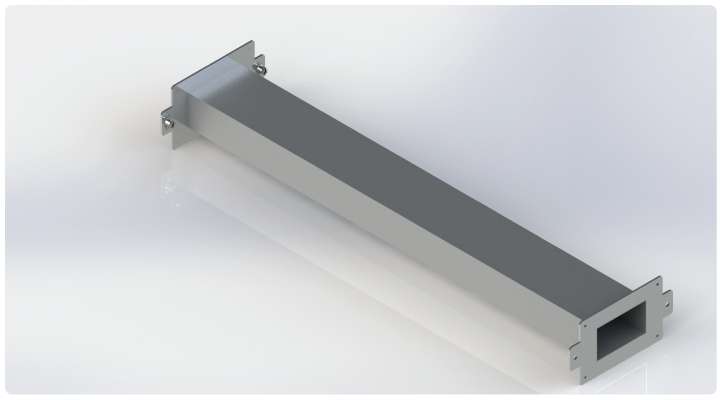

Waveguide 800mm

Code: WG800

Description: straight waveguide with flanges at each end.

Features: Length 31,5 inches (800mm). Internal dimensions: 3,9 x 2,15 inches (99×54,64 mm)

Material: Aluminum

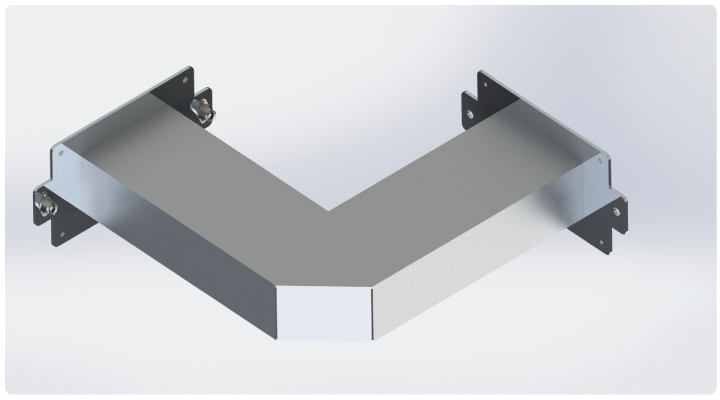

Waveguide Bend e- plane

Code: BEND001

Description: Elbow 90 ° change in the direction of the transmission waveguide.

Features: Internal Dimensions: 3,9 x 2,15 inches (99×54,64mm)

Material: Aluminum

Waveguide Bend h-plane

Code: BEND002

Description: Elbow 90 ° change in the direction of the transmission waveguide.

Features: Internal Dimensions: 3,9 x 2,15 inches (99×54,64mm)

Material: Aluminum

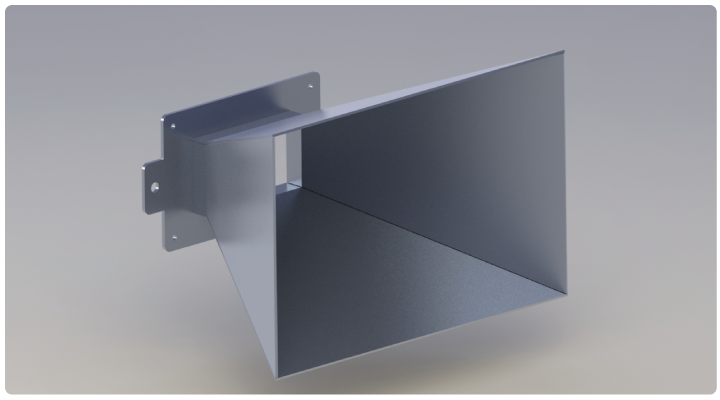

Antenna 30x20mm Aluminum

Code: ANTENNA001

Description: Horn Antenna type for applications up to 11,81 x 7,87 inches (300x200mm)

Features: Interior Dimensions End 1 : 3,9 x 2,15 inches (99×54,64mm). End 2 Dimensions: 11,81 x 7,87 inches (300x200mm)

Material: Aluminum

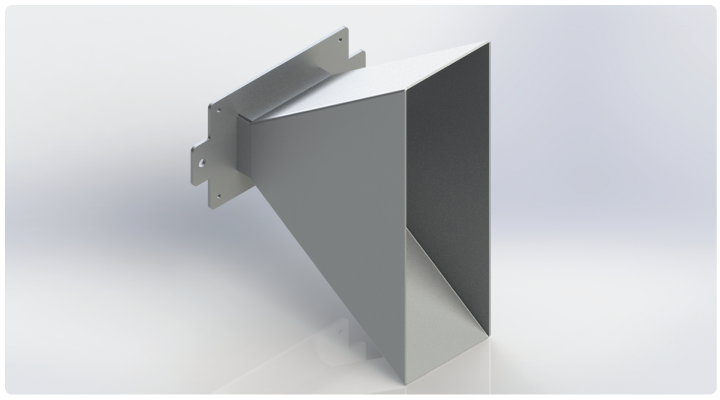

Antenna 30×10 Aluminum

Code: ANTENNA002

Description: Horn Antenna type for applications up to 11,81 x 3,94 inches (300x100mm).

Features: Interior Dimensions End 1 : 3,9 x 2,15 inches (99×54,64mm). End 2 Dimensions: 11,81 x 3,94 inches (300x100mm)

Material: Aluminum
